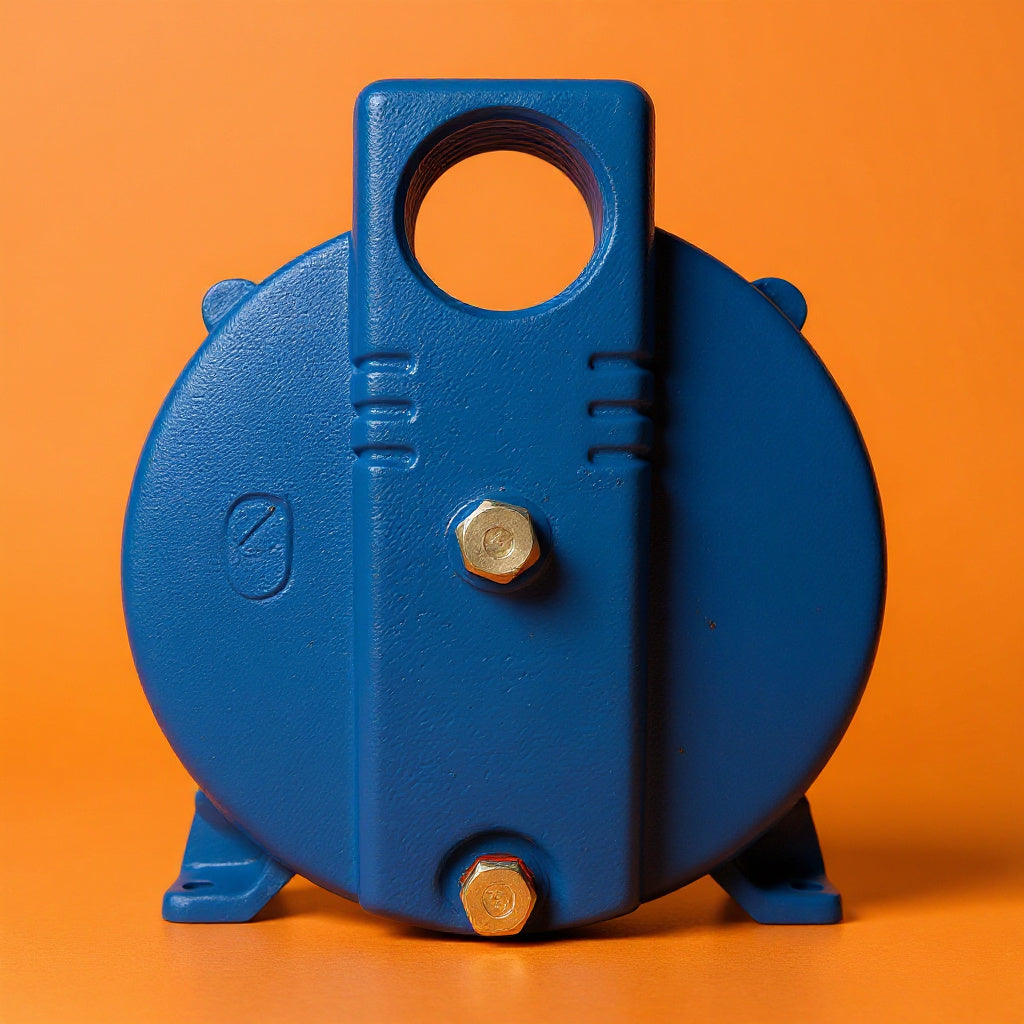

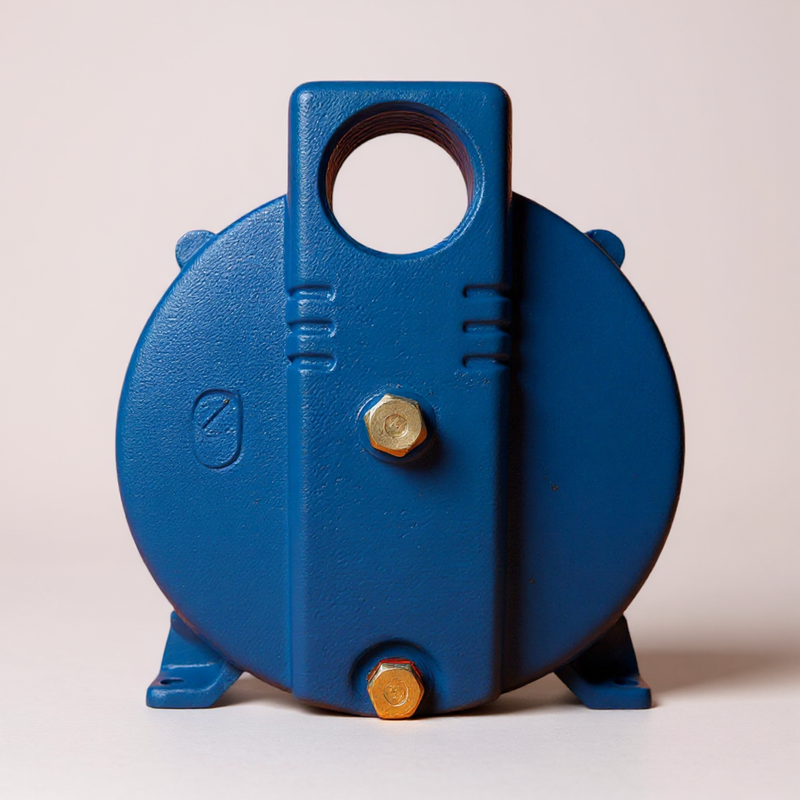

Goulds 1K333 Front Casing – Cast Iron Replacement for JS Series Pumps
Product Overview
A cracked or corroded front casing on a Goulds JS Series pump is more than a minor leak; it is a full system failure waiting to happen. During peak irrigation season or high demand periods, a compromised pump housing leads to cavitation, loss of prime, and eventual motor burnout. These failures often occur when technician schedules are at their tightest and replacement parts are hardest to source due to seasonal supply chain volatility. By securing this genuine Goulds 1K333 casing now, you eliminate the risk of extended downtime and the emergency labor costs associated with a failed inspection or a dried-out landscape. Planning ahead ensures your clients do not experience the frustration of a non-functional water system when they need it most.
The Goulds 1K333 front casing is engineered from heavy-duty cast iron, providing a significant durability advantage over aftermarket alternatives that may not meet the same casting tolerances. This genuine OEM replacement ensures a precise fit for the JS Series, reducing the labor time your crews spend on pump rebuilds and eliminating the need for field modifications. Using factory-spec components maintains the pump performance curve and protects the internal impeller assembly from misalignment. Investing in high-grade cast iron components keeps your service trucks stocked with reliable parts, giving your business a competitive edge through faster turnaround times and fewer warranty callbacks.
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Goulds Water Technology |
| Part Number | 1K333 |
| Material | Grade 30 Cast Iron |
| Compatible Series | Goulds JS Plus and JS Series Shallow Well Pumps |
| Connection Type | NPT Threaded Ports |
| Maximum Pressure | 125 PSI |
| Finish | Electrophoretic Paint Coating |
| Weight | Approx. 12 lbs |
Available Models & Sizes
The Goulds 1K333 is the standard replacement front casing for the JS Series shallow well jet pumps. While this specific part is designed for the JS model line, various gaskets and seal kits are required to complete a full overhaul. Please contact our technical desk for full system configurations or bulk pricing for large scale maintenance contracts.
Key Features
- Rugged cast iron construction provides superior resistance to hydraulic shock and mechanical stress.
- Precision machined suction and discharge ports ensure leak free connections with standard NPT fittings.
- Factory bored mounting holes align perfectly with the JS Series motor adapter for rapid assembly.
- Protective primer coating prevents internal corrosion and external rusting in humid environments.
- Designed to maintain optimal fluid dynamics within the pump volute for consistent flow rates.
- Genuine OEM part ensures full compatibility with existing Goulds impellers and diffusers.
Common Applications
- Residential lawn and garden systems
- Agricultural and crop irrigation
- Municipal parks and public spaces
- Greenhouse and nursery operations
- Potable water supply systems
- Sports turf and golf course maintenance
Installation Notes
Professional installation requires a standard socket set and a replacement casing gasket to ensure a watertight seal. Before installation, inspect the internal volute for debris and ensure the existing impeller is not damaged. Torque the casing bolts in a star pattern according to Goulds technical specifications to prevent uneven pressure on the seal. Always verify that the pump has been fully primed and all air is bled from the system before restoring power to avoid dry running the new assembly.
