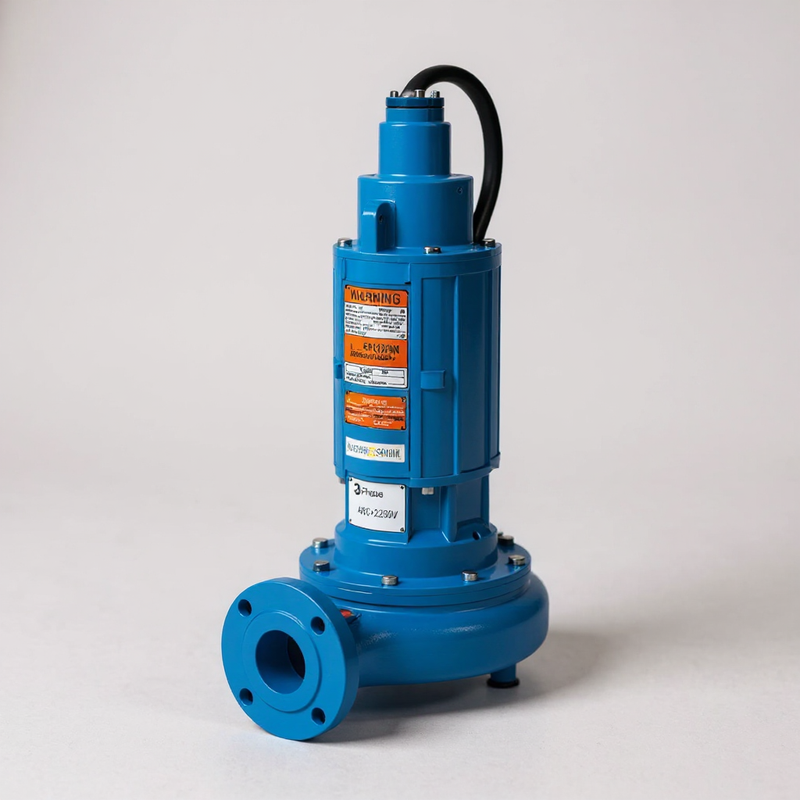

Goulds 3SDX12F4KC, 3SDX Series, Explosion Proof Sewage Pump
Product Overview
System shutdowns in hazardous environments represent more than just a maintenance headache; they are a direct threat to Site safety and operational compliance. When a sewage pump fails in a high risk location, the resulting backups and environmental hazards can lead to immediate site closures, heavy municipal fines, and significant property damage. During the peak construction and maintenance seasons, demand for explosion proof equipment surges while factory lead times often stretch into months. Securing your Goulds 3SDX series pump now ensures your projects stay on schedule and your clients remain protected from the cascading costs of emergency system failures and failed safety inspections.
The Goulds 3SDX12F4KC stands apart from standard submersible pumps due to its dual seal design and Class I, Division 1, Group C and D explosion proof rating. While lower grade alternatives might initially lower project costs, they frequently fail prematurely under the heavy solids loading and corrosive conditions typical of municipal and industrial waste streams. By installing a professional grade Goulds unit, your crews reduce the frequency of hazardous basin entries and emergency service calls. This technical reliability lowers the long term cost of ownership for your clients and reinforces your reputation as a contractor who prioritizes high performance and site safety.
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Goulds Water Technology |
| Model Number | 3SDX12F4KC |
| Pump Type | Explosion Proof Sewage Submersible |
| Horsepower | 1.2 HP |
| Voltage | 230/460V, 3-Phase |
| Discharge Size | 3 Inch Flanged |
| Solids Handling | Up to 2.5 Inch Spherical Solids |
| Certification | Class I, Division 1, Group C and D (UL/CSA) |
| Impeller Material | Cast Iron, Dual Vane Non-Clog |
| Casing Material | Heavy Duty Cast Iron (ASTM A48) |
Available Models & Sizes
The 3SDX series is available in several configurations with motor sizes ranging from 1.5 HP to 5 HP and discharge sizes including 3 inch and 4 inch options to meet specific head and flow requirements. Please contact our technical sales team for full configuration details, performance curves, or specialized pricing for bulk municipal project orders.
Key Features
- Explosion proof motor housing certified for Class I, Division 1 hazardous locations provides maximum site safety.
- Dual mechanical seals with an intermediate oil chamber offer superior motor protection and leak detection capability.
- Non-clogging dual vane impeller is designed to handle up to 2.5 inch solids without snagging or loss of efficiency.
- Heavy duty cast iron construction ensures long term structural integrity in corrosive wastewater environments.
- SST shaft and fasteners provide added resistance to pitting and chemical degradation over the life of the pump.
- Tandem seal arrangement allows for continuous monitoring of seal integrity to prevent catastrophic motor failure.
Common Applications
- Industrial and chemical manufacturing waste systems
- Municipal parks and public spaces with hazardous classifications
- Commercial landscape irrigation using treated effluent
- Wastewater lift stations for large scale residential developments
- Municipal sewage and stormwater collection systems
- Nursery operations requiring heavy duty solids handling
Installation Notes
Proper installation requires adherence to all local and national electrical codes regarding hazardous locations. This pump must be utilized with a compatible explosion proof control panel and intrinsic safety barriers for the seal leak and heat sensors. Ensure the 3 inch discharge flange is properly aligned with the guide rail system or stationary base elbow to prevent stress on the pump casing. It is highly recommended to verify that all electrical conduits are sealed with approved explosive proof packing compounds at the point of entry into the wet well.
