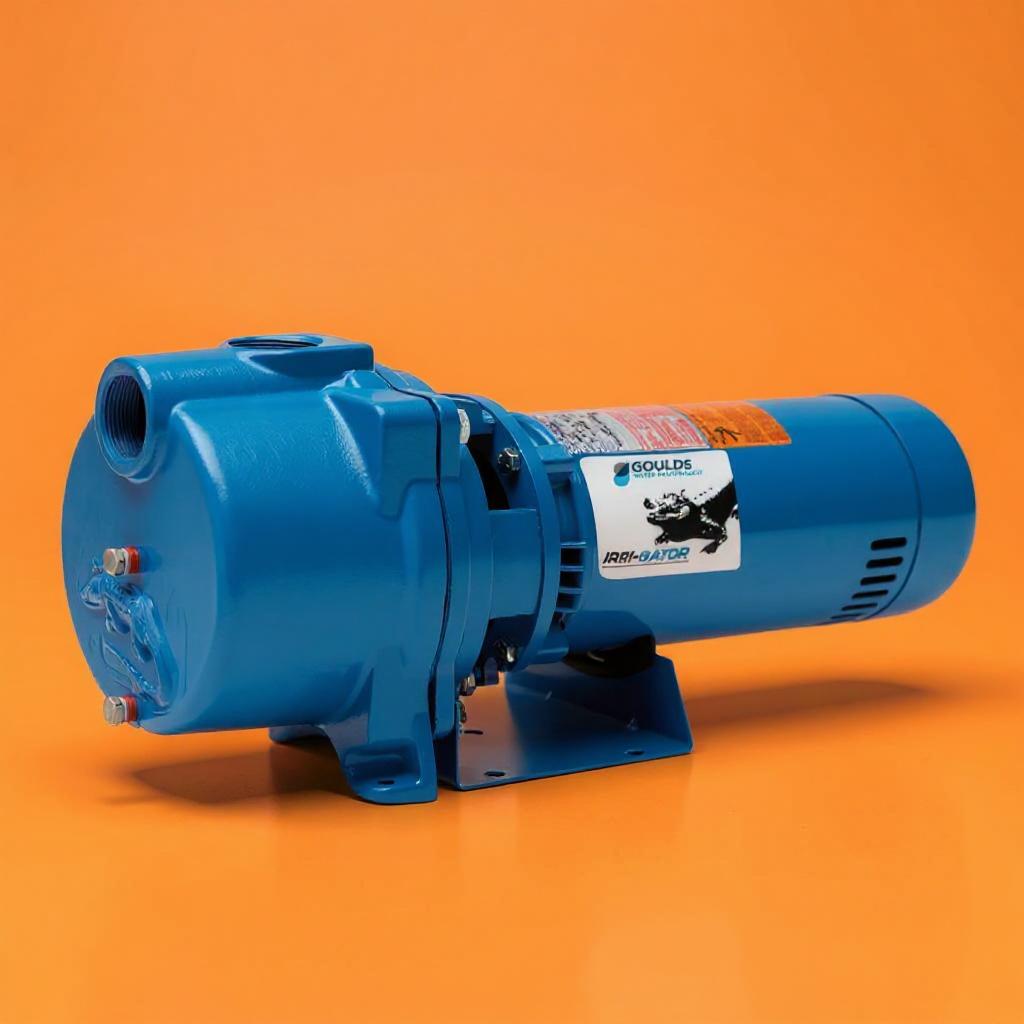

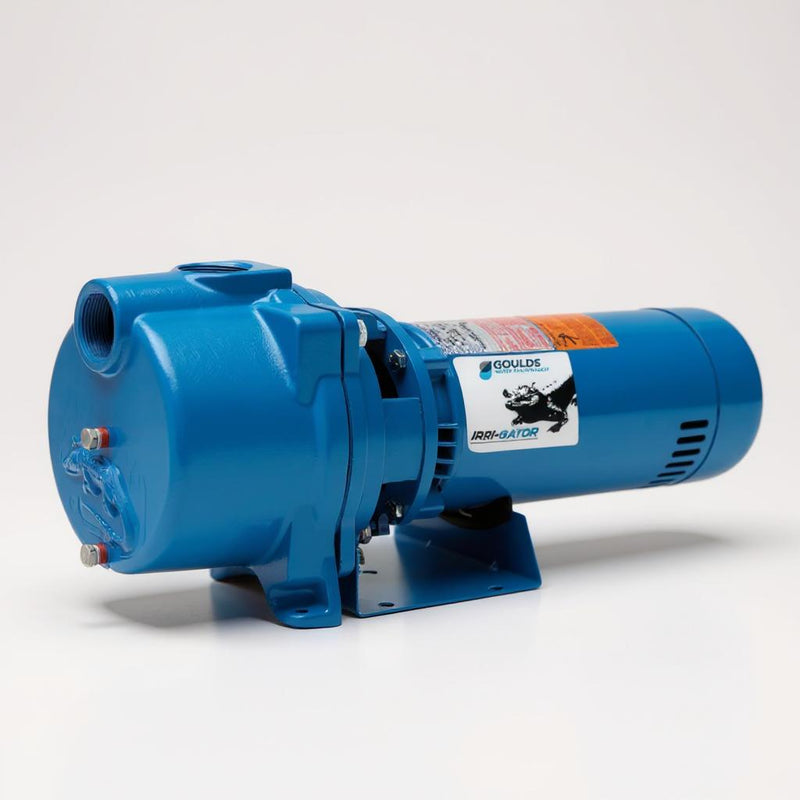

Goulds GT07 IRRI-GATOR Self Priming Centrifugal Pump (3/4 HP, Single Phase)
Goulds GT07 IRRI-GATOR Self Priming Centrifugal Pump (3/4 HP, Single Phase)
Visit the ASIW Store

Goulds GT07 IRRI-GATOR Self Priming Centrifugal Pump (3/4 HP, Single Phase)

Product Overview

System shutdowns in the peak of the summer heat can lead to irreversible turf damage and significant crop loss. When a primary irrigation pump fails, the pressure to restore water flow immediately becomes a race against the clock for your crews. During high demand periods, sourcing reliable 3/4 HP centrifugal pumps can be difficult due to frequent lead time delays and manufacturer back-orders. By securing your Goulds GT07 IRRI-GATOR inventory now, you ensure your clients remain operational through the driest months. Proper planning eliminates the risk of failed inspections or emergency service calls that pull your team away from scheduled installations.

The GT07 IRRI-GATOR stands apart from lower grade alternatives through its dedicated self priming design which allows it to re-prime automatically once the pump body is filled with water. This technical advantage reduces labor costs by eliminating the need for technicians to manually prime the system after every power cycle or minor suction leak. The cast iron construction provides far greater durability than plastic or lightweight alloy pumps, ensuring your installs withstand the rigors of continuous duty. Maintaining a stock of these professional grade units gives your business a competitive edge by providing immediate, reliable solutions for high pressure irrigation requirements.

Product Specifications

Specification Detail
Material Cast Iron Casing / Glass-Filled Thermoplastic Impeller
Horsepower 3/4 HP
Phase Single Phase
Voltage 115/230V Dual Voltage
Suction / Discharge 1-1/2 inch NPT / 1-1/2 inch NPT
Maximum Pressure 125 PSI
Self-Priming Capability Up to 25 Feet Suction Lift
Color/Finish Goulds Blue / Powder Coated

Available Models & Sizes

The IRRI-GATOR series is available in several horsepower configurations including 3/4 HP, 1 HP, 1.5 HP, and 2 HP models to match specific flow and head requirements. Contact our sales department for current pricing on bulk orders or to discuss specific voltage configurations for your project site.

Key Features

  • Self priming design handles air pockets in the suction line and resumes water delivery quickly.
  • Back pull out design allows for motor removal without disturbing the system piping to simplify maintenance.
  • Electro-coat paint process is applied inside and out for superior corrosion resistance and longer service life.
  • Built in overload protection with automatic reset prevents motor burnout during high heat or low voltage events.
  • Glass filled thermoplastic impeller is precision molded for high efficiency and resistance to abrasive minerals.
  • FDA compliant mechanical seal utilizes carbon versus ceramic faces for reliable leak prevention under pressure.

Common Applications

  • Commercial landscape irrigation
  • Residential lawn and garden systems
  • Agricultural and crop irrigation
  • Sports turf and golf course maintenance
  • Municipal parks and public spaces
  • Greenhouse and nursery operations

Installation Notes

Standard installation requires a wrench set, pipe sealant, and appropriate NPT fittings for the suction and discharge ports. For optimal performance, ensure all suction line joints are airtight using professional grade thread tape or paste. Install a foot valve or check valve if the suction lift exceeds ten feet to maintain prime and protect the internal components. Always verify that the motor is wired correctly for the onsite voltage of 115V or 230V before initial startup to prevent electrical damage.

$58599
In Stock
FREE delivery today. Order within
Order soon.
Product Overview

System shutdowns in the peak of the summer heat can lead to irreversible turf damage and significant crop loss. When a primary irrigation pump fails, the pressure to restore water flow immediately becomes a race against the clock for your crews. During high demand periods, sourcing reliable 3/4 HP centrifugal pumps can be difficult due to frequent lead time delays and manufacturer back-orders. By securing your Goulds GT07 IRRI-GATOR inventory now, you ensure your clients remain operational through the driest months. Proper planning eliminates the risk of failed inspections or emergency service calls that pull your team away from scheduled installations.

The GT07 IRRI-GATOR stands apart from lower grade alternatives through its dedicated self priming design which allows it to re-prime automatically once the pump body is filled with water. This technical advantage reduces labor costs by eliminating the need for technicians to manually prime the system after every power cycle or minor suction leak. The cast iron construction provides far greater durability than plastic or lightweight alloy pumps, ensuring your installs withstand the rigors of continuous duty. Maintaining a stock of these professional grade units gives your business a competitive edge by providing immediate, reliable solutions for high pressure irrigation requirements.

Product Specifications
Specification Detail
Material Cast Iron Casing / Glass-Filled Thermoplastic Impeller
Horsepower 3/4 HP
Phase Single Phase
Voltage 115/230V Dual Voltage
Suction / Discharge 1-1/2 inch NPT / 1-1/2 inch NPT
Maximum Pressure 125 PSI
Self-Priming Capability Up to 25 Feet Suction Lift
Color/Finish Goulds Blue / Powder Coated
Available Models & Sizes

The IRRI-GATOR series is available in several horsepower configurations including 3/4 HP, 1 HP, 1.5 HP, and 2 HP models to match specific flow and head requirements. Contact our sales department for current pricing on bulk orders or to discuss specific voltage configurations for your project site.

Key Features
  • Self priming design handles air pockets in the suction line and resumes water delivery quickly.
  • Back pull out design allows for motor removal without disturbing the system piping to simplify maintenance.
  • Electro-coat paint process is applied inside and out for superior corrosion resistance and longer service life.
  • Built in overload protection with automatic reset prevents motor burnout during high heat or low voltage events.
  • Glass filled thermoplastic impeller is precision molded for high efficiency and resistance to abrasive minerals.
  • FDA compliant mechanical seal utilizes carbon versus ceramic faces for reliable leak prevention under pressure.
Common Applications
  • Commercial landscape irrigation
  • Residential lawn and garden systems
  • Agricultural and crop irrigation
  • Sports turf and golf course maintenance
  • Municipal parks and public spaces
  • Greenhouse and nursery operations
Installation Notes

Standard installation requires a wrench set, pipe sealant, and appropriate NPT fittings for the suction and discharge ports. For optimal performance, ensure all suction line joints are airtight using professional grade thread tape or paste. Install a foot valve or check valve if the suction lift exceeds ten feet to maintain prime and protect the internal components. Always verify that the motor is wired correctly for the onsite voltage of 115V or 230V before initial startup to prevent electrical damage.
