Goulds Water Technology

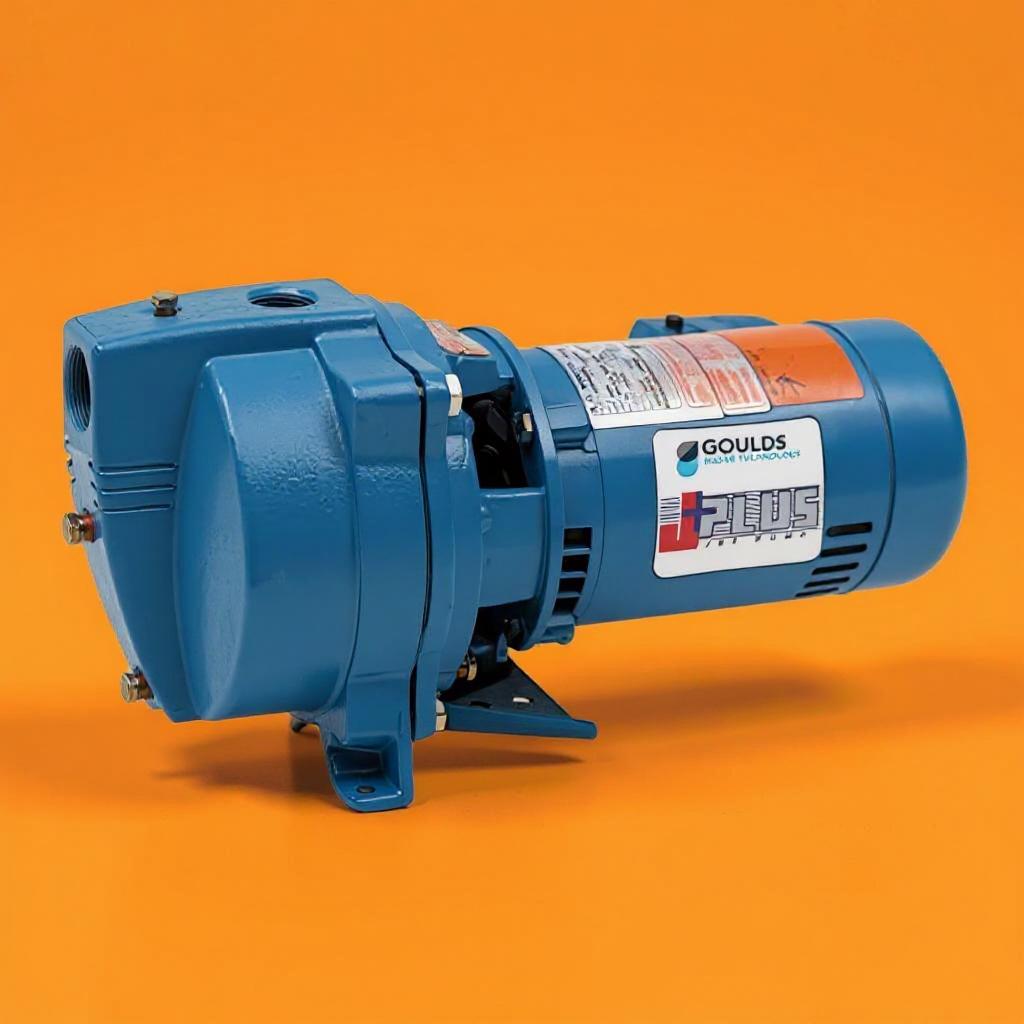

Goulds J10S Self-Priming Shallow Well Jet Pump (1 HP, Cast Iron, Dual Voltage 115/230V)
Goulds J10S Self-Priming Shallow Well Jet Pump (1 HP, Cast Iron, Dual Voltage 115/230V)
Couldn't load pickup availability
The Goulds J10S is a premium-quality shallow well jet pump designed for residential homes drawing water from wells up to 25 feet deep. With its robust 1 HP motor and durable cast iron construction, the J10S is built to deliver consistent water pressure and reliable performance for household water supply systems.
Specifications
Specifications
Condition: New
Brand: GOULDS WATER TECHNOLOGY
Manufacturer Part Number: J10S
Horsepower: 1 HP
Voltage: 115/230V Dual Voltage
Phase: Single Phase
Max Flow Rate: Up to 23 GPM
Flow Rates @ 10 PSI: 23 GPM
Flow Rates @ 20 PSI: 20 GPM
Flow Rates @ 30 PSI: 17 GPM
Flow Rates @ 40 PSI: 14 GPM
Best Efficiency Flow: 15 GPM
Best Efficiency Head: 130 ft
Feet of Head (Max): 145 ft
Feet of Head (Min): 5 ft
Shut-Off Pressure: 63 PSI
Suction/Discharge Ports: 1-1/4" NPT Suction, 1" NPT Discharge
Priming Capability: Self-priming up to 25 ft
Pump Housing Material: Cast Iron
Impeller Material: Noryl
Motor Enclosure: Open Drip Proof (ODP)
Thermal Overload Protection: Yes
Duty Cycle: Continuous
Frequency: 60 Hz
RPM (Max): 3,450 RPM
Case Pressure (Max): 100 PSI
Max Water Temperature: 140 °F
Features
Features
- Cast Iron Body
- Self-Priming Design
- Dual Voltage Motor
- Back Pull-Out Design
- Precision Thermoplastic Impeller
Applications
Applications
- Residential water supply systems
- Shallow well installations (up to 25 feet)
- Homes, cabins, and cottages
- Water pressure boosting for household fixtures
- Garden irrigation and hose supply
Why Choose Goulds?
Why Choose Goulds?
Backed by over 170 years of innovation, Goulds Water Technology delivers industry-leading performance and durability. The J10S shallow well jet pump embodies this tradition with efficient operation, premium components, and easy maintenance. Whether you're replacing an old system or installing new, this pump offers dependable water flow you can trust.
