Goulds Water Technology

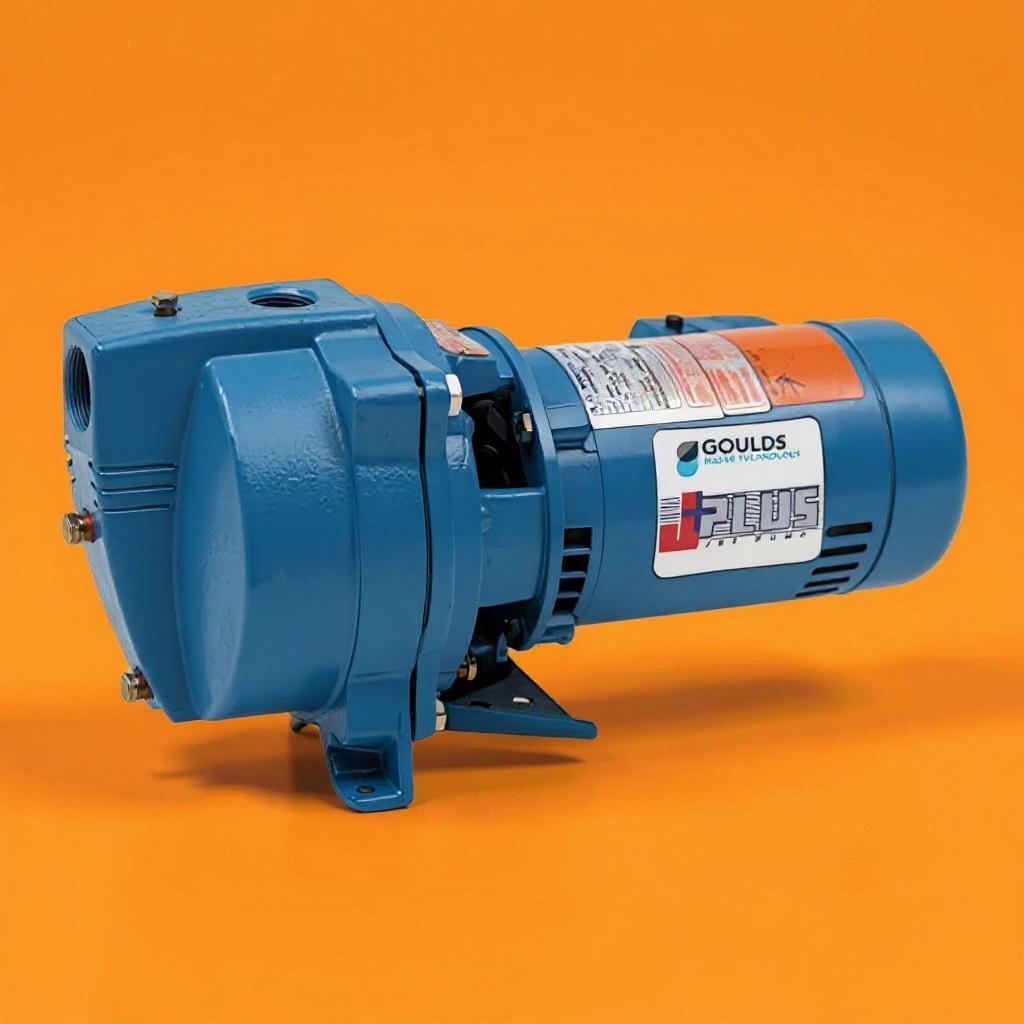

Goulds J5S Self-Priming Shallow Well Jet Pump (1/2HP, Cast Iron, Dual Voltage 115/230V)
Goulds J5S Self-Priming Shallow Well Jet Pump (1/2HP, Cast Iron, Dual Voltage 115/230V)
Couldn't load pickup availability
The Goulds J5S is a high-quality, American-built shallow well jet pump designed to deliver reliable performance for homes drawing water from wells up to 25 feet deep. With a compact 1/2 HP motor and heavy-duty cast iron housing, this pump is a trusted solution for boosting residential water pressure and supply.
Specifications
Specifications
Condition: New
Brand: GOULDS WATER TECHNOLOGY
Manufacturer Part Number: J5S
Horsepower: 1/2 HP
Voltage: 115/230V Dual Voltage
Phase: Single Phase
Max Flow Rate: Up to 21 GPM
Flow Rates @ 10 PSI: 21 GPM
Flow Rates @ 20 PSI: 18 GPM
Flow Rates @ 30 PSI: 15 GPM
Flow Rates @ 40 PSI: 12 GPM
Best Efficiency Flow: 14 GPM
Best Efficiency Head: 100 ft
Feet of Head (Max): 125 ft
Feet of Head (Min): 5 ft
Shut-Off Pressure: 60 PSI
Suction/Discharge Ports: 1-1/4" NPT Suction, 1" NPT Discharge
Priming Capability: Self-priming up to 25 ft
Pump Housing Material: Cast Iron
Impeller Material: Noryl
Motor Enclosure: Open Drip Proof (ODP)
Thermal Overload Protection: Yes
Duty Cycle: Continuous
Frequency: 60 Hz
RPM (Max): 3,450 RPM
Case Pressure (Max): 100 PSI
Max Water Temperature: 140 °F
Features
Features
- Rugged Cast Iron Construction
- Self-Priming Design
- Dual Voltage Flexibility
- Back Pull-Out Design
- Quiet, Efficient Operation
Applications
Applications
- Residential water systems
- Homes, cabins, and small farms
- Shallow wells up to 25 ft deep
- Water pressure boosting
- Lawn and garden irrigation
Why Choose Goulds?
Why Choose Goulds?
With a legacy of over 170 years in pump manufacturing, Goulds Water Technology is a name you can trust. The J5S is a go-to solution for homeowners seeking long-term performance, minimal maintenance, and dependable water delivery backed by American engineering and serviceability.
