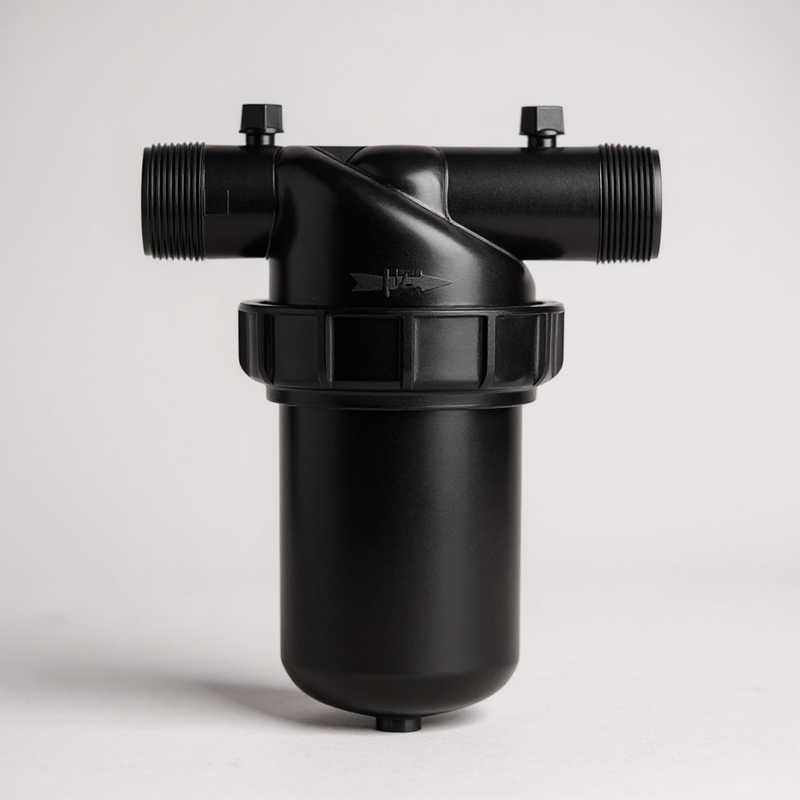

Netafim 1" MPT - Standard Disc Filter for Lawn & Garden Irrigation
Product Overview
Compromised filtration leads to clogged emitters, uneven watering, and costly turf replacement during the peak of the growing season. When a low-quality filter fails or bypasses sediment, your crews are forced into emergency service calls while summer heat puts your clients' landscapes at risk. With seasonal demand surging and supply chain fluctuations making inventory unpredictable, securing high-performance filtration now is the only way to avoid project delays or failed inspections. Planning ahead with robust filtration ensures your systems stay operational and your clients remain satisfied throughout the hottest months of the year.
The Netafim 1 inch MPT Standard Disc Filter offers a significant technical advantage over mesh screens that tear or collapse under pressure. This disc technology provides a three dimensional filtration process that captures far more debris before requiring a manual flush, effectively reducing long term maintenance intervals and labor costs. By choosing a professional grade solution from Netafim USA, you provide your installs with a superior safety margin against poor water quality. Maintaining a well-stocked inventory of these units gives you a distinct competitive edge when bidding on residential and light commercial projects where reliability is non-negotiable.
Product Specifications
| Specification | Detail |
|---|---|
| Material | High-Quality Reinforced Polyamide |
| Connection Type | 1 Inch Male Pipe Thread (MPT) |
| Filter Element | Stackable Polypropylene Discs |
| Maximum Pressure | 145 PSI |
| Maximum Flow Rate | 26 GPM (Gallons Per Minute) |
| Color/Finish | Black Body with Color-Coded Discs |
| Filtration Degree | Varies by Disc Color (Standard 120 Mesh) |
Available Models & Sizes
This specific unit features 1 inch Male Pipe Thread connections for easy integration into standard manifolds. Netafim offers various micron ratings and larger body sizes for higher flow requirements. Please contact our sales team for full configurations, bulk pricing, or specialized disc color options to meet your specific project requirements.
Key Features
- Three dimensional disc depth filtration captures significantly more organic and inorganic material than standard screens.
- Reinforced polyamide construction provides high resistance to chemical fertilizers and common landscape chemicals.
- Large effective filtration area extends the time between cleaning cycles to save your crews time on site.
- Non corrosive materials ensure a long service life even when installed in harsh outdoor environments or valve boxes.
- Tool free access to the filter element allows for fast and simple manual cleaning during routine maintenance.
- Standard MPT connections provide universal compatibility with existing PVC or poly pipe irrigation headers.
Common Applications
- Residential lawn and garden systems
- Commercial landscape irrigation
- Greenhouse and nursery operations
- Municipal parks and public spaces
- Agricultural and crop irrigation
- Drip irrigation and micro-irrigation zones
Installation Notes
Install the filter downstream of the master valve and before the zone valves to protect the entire system, ensuring the flow direction matches the arrow on the filter body. Use professional grade PTFE thread seal tape on the MPT connections to prevent leaks, but avoid over-tightening which can stress the plastic threads. For systems with high sediment loads, consider installing an upstream blow-out valve to assist with periodic manual cleaning per manufacturer recommendations.
