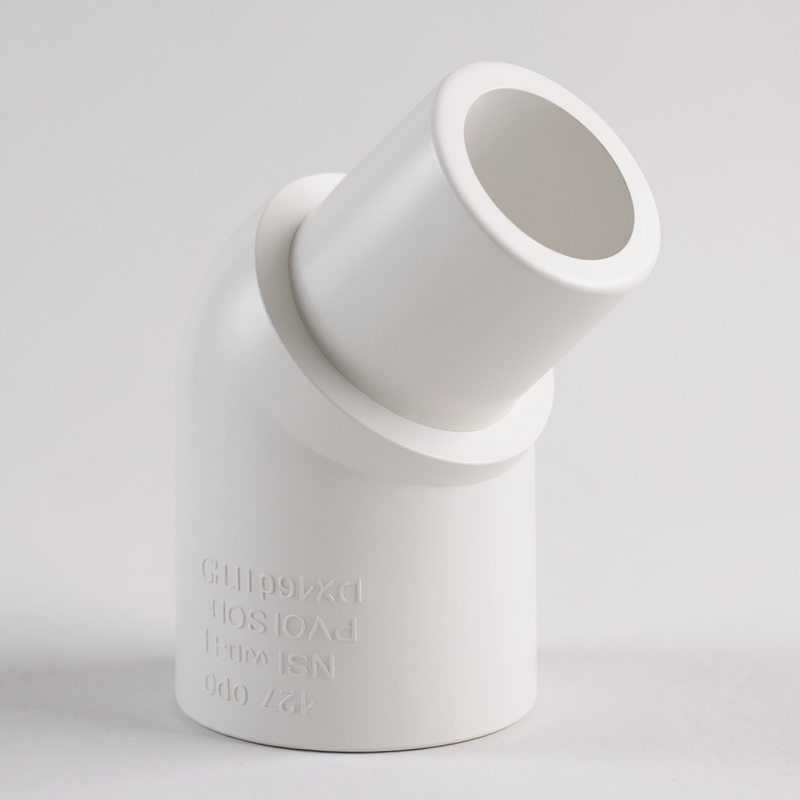

Sch40 45°STREET ELBOW(SPIG x SOC)
Sch40 45°STREET ELBOW(SPIG x SOC)
Visit the ASIW Store

Sch40 45°STREET ELBOW(SPIG x SOC)

Product Overview

Missing a single fitting can halt a high volume irrigation install, leading to costly labor delays and missed deadlines during the peak summer push. When your crews are forced to work around missing inventory, you risk system pressure drops and potential leaks that result in turf damage or failed municipal inspections. Supply chain instability often leads to back-orders on essential Sch 40 components right when local demand spikes. Planning your inventory now ensures your projects stay on schedule, keeping your clients satisfied and your crews productive without the stress of local stock-outs.

This Lesso Schedule 40 Street Elbow provides a distinct technical advantage by allowing direct connections into socket fittings without the need for additional pipe nipples. By utilizing the Spigot by Socket configuration, you reduce the physical footprint of the joint and minimize the number of solvent weld points required for a 45 degree offset. This design saves significant labor time in tight valve boxes or manifold builds where space is restricted. Maintaining a stock of these specialized fittings gives you a competitive edge by allowing for cleaner, faster, and more professional installations compared to standard elbow and nipple combinations.

Product Specifications

Specification Detail
Material High Grade Polyvinyl Chloride (PVC)
Connection Type Spigot x Socket (SPIG x SOC)
Angle 45 Degrees
Schedule Rating Schedule 40
Color White
Brand Lesso
Standards ASTM D2466 Compliance
Max Operating Temp 140 Degrees Fahrenheit

Available Models & Sizes

The Lesso Schedule 40 Street Elbow series is available in a variety of standard diameters ranging from 1/2 inch through 4 inch configurations to accommodate residential and commercial mainlines. Contact our sales team for bulk pricing on specific sizes or for custom large scale project quotes.

Key Features

  • Spigot end fits directly into standard socket fittings to save space in manifold assemblies.
  • Precision molded from virgin PVC resin for consistent wall thickness and long term pressure ratings.
  • Smooth interior walls reduce friction loss and prevent sediment buildup within the irrigation line.
  • Deep socket depth ensures a larger surface area for solvent welding and a leak proof bond.
  • High chemical resistance makes these fittings compatible with standard landscape fertilizers and additives.
  • Standard white finish matches existing PVC piping for a clean and professional system appearance.

Common Applications

  • Commercial landscape irrigation
  • Residential lawn and garden systems
  • Sports turf and golf course maintenance
  • Municipal parks and public spaces
  • Greenhouse and nursery operations
  • Potable water supply systems

Installation Notes

Ensure the spigot and socket ends are clean and free of debris before applying primer and solvent cement. This street elbow should be installed according to ASTM D2855 standards for maximum joint strength. Always verify that the fitting is fully bottomed out in the mating socket to maintain proper alignment. Proper cure times must be observed based on ambient temperature and pipe diameter before the system is pressurized to prevent joint failure.

$749
In Stock
FREE delivery today. Order within
Order soon.
Size:
