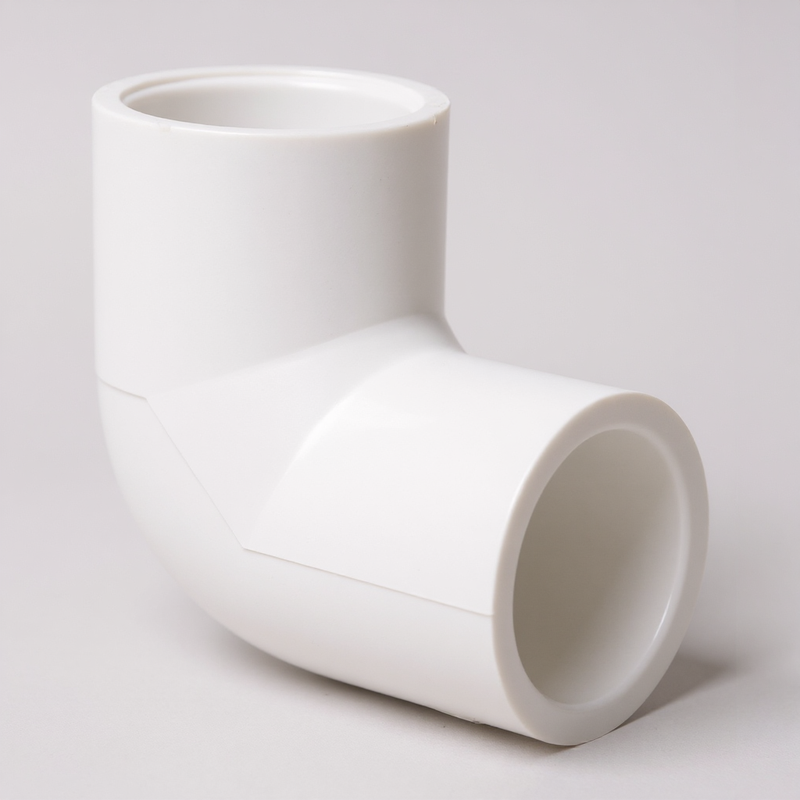

Sch40 90° ELBOW (SOC x SOC)
Sch40 90° ELBOW (SOC x SOC)
Visit the ASIW Store

Sch40 90° ELBOW (SOC x SOC)

Product Overview

A single failed fitting during a mid-summer heatwave can compromise an entire zones performance, leading to dry turf, stressed landscape beds, and costly emergency service calls. As peak irrigation season approaches, project deadlines tighten and the risk of supply chain delays increases. Securing your inventory of Sch40 90 degree elbows now prevents the frustration of stalled installs and the embarrassment of telling a client their system is down due to a missing back-ordered component. Planning ahead ensures your crews stay on site and your projects remain on schedule through the busiest months of the year.

These Lesso Sch40 elbows offer superior wall thickness and dimensional consistency compared to lower-grade alternatives often found in big-box retail channels. The precision-molded socket depths ensure a more secure solvent weld, reducing the likelihood of leaks under pressure or during ground settling. By utilizing a fitting engineered for professional tolerances, you minimize the labor hours spent on rework and warranty repairs. Maintaining a well-stocked trailer with these high-flow elbows gives your business a competitive edge by allowing for immediate repairs and faster system expansions without extra trips to the distributor.

Product Specifications

Specification Detail
Material High-Grade Polyvinyl Chloride (PVC)
Connection Type Socket x Socket (Slip x Slip)
Schedule Rating Schedule 40
Angle 90 Degrees
Max Pressure Rating Inferred 200 PSI to 280 PSI based on size
Color/Finish White / Smooth Finish
Certifications NSF/ANSI Standard 61 and 14 compliant
Manufacturer Lesso

Available Models & Sizes

The Lesso Sch40 90 degree elbow series is available in standard diameters ranging from 1/2 inch through 4 inch configurations to accommodate various lateral and mainline requirements. Please contact our sales team for current bulk pricing on specific sizes or for information regarding larger diameter industrial configurations for specialized projects.

Key Features

  • Heavy-duty PVC construction provides excellent resistance to corrosion and chemical degradation over the life of the system.
  • Uniform socket dimensions ensure a snug fit and consistent solvent distribution for leak-proof joints.
  • Smooth internal bore reduces friction loss, maximizing water pressure and flow efficiency to the heads.
  • Compatible with all standard Sch40 and Sch80 PVC pipes and solvent cements for seamless integration.
  • UV-resistant material maintains structural integrity even when exposed to sunlight in above-ground manifolds.
  • Standardized design allows for quick alignment and rapid assembly, reducing total labor time per valve box.

Common Applications

  • Commercial landscape irrigation
  • Residential lawn and garden systems
  • Agricultural and crop irrigation
  • Sports turf and golf course maintenance
  • Municipal parks and public spaces
  • Greenhouse and nursery operations

Installation Notes

Installers should ensure all pipe ends are square and deburred before applying primer and solvent cement. It is recommended to follow a two-step solvent welding process according to ASTM standards to ensure a permanent bond. Allow for adequate cure time based on ambient temperature and pipe diameter before subjecting the system to full operating pressure. Always consult local plumbing and irrigation codes to ensure compliance with burial depth and thrust blocking requirements for larger diameter lines.

$749
In Stock
FREE delivery today. Order within
Order soon.
