Sch40 90° STREET ELBOW (MIPT x SOC)

Product Overview

Mistakes in the field or missing inventory on the truck can halt a commercial installation during the height of the summer heat. A single missing Sch40 90 degree street elbow leads to incomplete zones, dry turf, and frustrated clients who expect a functional system before the weekend. With global supply chains frequently experiencing delays and regional shortages, waiting until the day of the install to source your fittings is a risk to your project deadlines. Securing your inventory now ensures your crews stay moving and prevents the costly downtime associated with site return trips or failed inspections due to makeshift plumbing solutions.

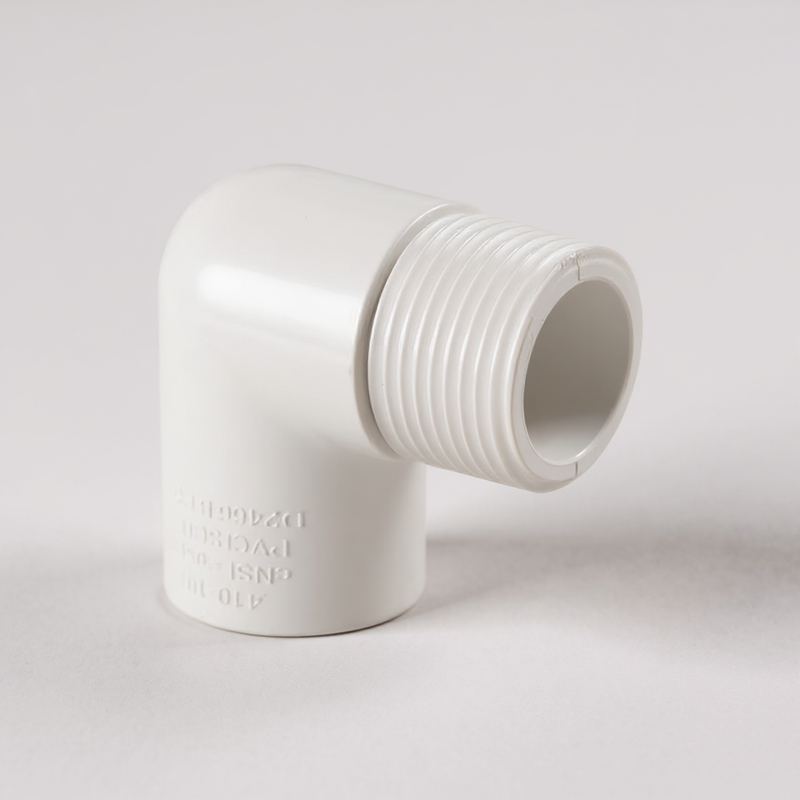

The Lesso Sch40 street elbow provides a critical technical advantage by combining a Male Iron Pipe Thread (MIPT) with a Solvent Weld Socket (SOC) in a compact 90 degree turn. This design eliminates the need for an extra nipple and coupling, reducing the number of potential leak points in your manifolds or valve boxes. By utilizing a high grade PVC resin, these fittings withstand the rigorous demands of high pressure irrigation systems better than generic retail alternatives. Maintaining a stock of these professional grade elbows allows you to provide a tidier, more compact installation that saves both labor time and valuable space in the valve box.

Product Specifications

Specification Detail
Material High Grade PVC Schedule 40
Connection Type 1 Male Iron Pipe Thread (MIPT)
Connection Type 2 Standard Solvent Weld Socket (SOC)
Angle 90 Degrees
Maximum Pressure Rated for Sch40 Cold Water Applications
Color White
Manufacturer Lesso
Certifications NSF/ANSI 14 and 61 Compliant

Available Models & Sizes

This Lesso street elbow is available in standard diameters ranging from 1/2 inch to 2 inch configurations to match common irrigation lateral and main line sizes. Please contact our sales team for bulk volume pricing or to confirm current availability for larger diameter industrial requirements.

Key Features

  • Threaded male end allows for direct connection into valves or pumps without additional nipples.
  • Formulated from virgin PVC resin for consistent wall thickness and superior burst strength.
  • Precision molded socket ensures a tight interference fit for reliable solvent welding.
  • Deep thread patterns provide a secure seal and minimize the risk of cross threading during assembly.
  • Compact profile facilitates clean manifold construction in tight residential or commercial valve boxes.
  • Corrosion resistant material provides a long service life in buried or exposed outdoor environments.

Common Applications

  • Commercial landscape irrigation
  • Residential lawn and garden systems
  • Sports turf and golf course maintenance
  • Municipal parks and public spaces
  • Greenhouse and nursery operations
  • Pool/spa/water feature plumbing

Installation Notes

Ensure all socket connections are cleaned with an approved PVC primer before applying medium body solvent cement for a permanent bond. When engaging the MIPT side, use a high quality PTFE thread seal tape or non hardening pipe dope to prevent leaks, taking care not to over tighten the fitting which can cause stress cracking in the female housing. Follow all local plumbing codes regarding transition fittings and allow for proper cure times before pressure testing the system.

$749
In Stock
